Description

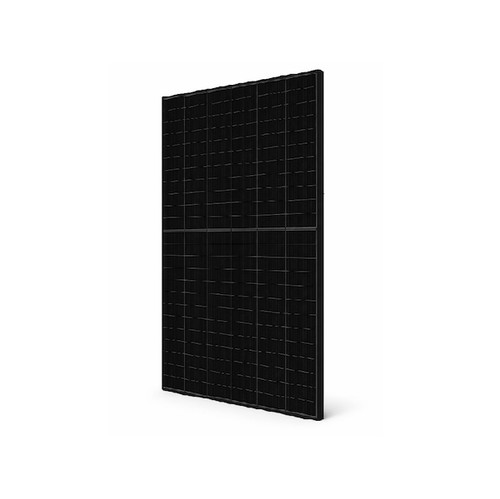

The Canadian Solar CS6.2-66TB-610HR is a 610 watt TOPCon bifacial solar panel that delivers exceptional power output, long-term reliability, and outstanding value. Part of Canadian Solar's TOPBiHiKu6 series, this premium module features 132 half-cut N-Type TOPCon solar cells in a bifacial dual-glass design with a durable black anodized aluminum frame. Operating at 22.6% efficiency, it is engineered for high energy production, excellent temperature performance, and increased output in hot climates while minimizing the effects of micro-cracks. Its bifacial design captures reflected sunlight from the rear of the panel, increasing energy production by up to 20%, depending on installation conditions and ground reflectivity.
Built for long-lasting performance, the CS6.2-66TB-610HR offers excellent resistance to power degradation, LeTID, and PID, and is rated to withstand 6,000 Pa snow loads and 5,400 Pa wind loads. UL Certified and CEC approved, it is backed by a 12-year product warranty and a 30-year linear power output warranty for added peace of mind. Produce your own clean energy with this high-efficiency, competitively priced Canadian Solar panel. Min Order pallet of 27 modules (1 pallet). Order online or PHONE 888-498-3331
FEATURES
- High efficiency, TOPCon bifacial all-black module
- Bifacial dual-glass design captures additional energy from the rear side
- Improved anti-LeTID and anti-PID performance for low power degradation and high energy yield
- High reliability with guaranteed 0 to +10W power output tolerance
- Passed load test of 6000 Pa to withstand heavier snow load and 5400 Pa to withstand wind pressure
- 12-year product warranty and 30-year power output warranty
- Qualifies for IRS Solar Energy Tax Credits and rebates
- UL certified, CEC, FSEC, IEC approved
Parts / Specifications
Manufacturer: |
Canadian Solar |
Product Line: |
TOPBiHiKu6 Black |
Country of Origin: |
China, Assembled in the USA from imported components |
Model: |
CS6.2-66TB-610HR |
Maximum Power STC: |
610 watts DC |
Maximum Power PTC: |
573.1 watts DC |
Nominal Power NOCT: |
461.0 watts DC |
Module Efficiency: |
22.6% |
Maximum Power Voltage Vmp (V): |
42.2 Volts |
Maximum Power Current Imp (A): |
14.23 Amps |
Open Circuit Voltage Voc (V): |
48.9 Volts |
Short Circuit Current Isc (A): |
15.2 Amps |
Maximum System Voltage (IEC/UL): |
1500V |
Maximum Series Fuse Rating: |
35 A |
Cells Per Module: |
132 half-cut cells |
Cell Type: |
Monocrystalline TOPCon cells |
Frame: |
Anodized aluminium alloy |
Back Glass: |
2.0 mm heat strengthened glass |
Front Cover: |
3.2 mm tempered glass with anti-reflective coating |
Dimensions: |
93.8 ˣ 44.6 ˣ 1.57 inches (2382 ˣ 1134 ˣ 40 mm) |
Weight: |
73.6 lbs (33.4 Kg) |
Connector Type: |
T6 series or MC4-EVO2A |
Output Cables: |
4.0 mm2 (IEC), 12 AWG (UL) |
Junction Box: |
IP68 Rated, 3 bypass diodes |
Front Load (snow) Test: |
6000 Pa |
Rear Static Load (wind) Test: |
5400 Pa |
Hailstone impact test: |
1 inch hail at 23M/s from 1m distance |
Modules per Pallet: |
27 |
Pallet Weight: |
N/A |
Fire Safety Classification: |
TYPE 1 (UL 61730 1500V) or CLASS C (IEC 61730) |
Certifications: |
IEC 61215 / IEC 61730 / UL 61730 / IEC 61701 / IEC 62716 |
Product Warranty: |
12-year material and workmanship |
Performance Warranty: |
30-year linear power output warranty |
DISCLAIMER: |
Product specifications are dependent on manufacturer information and are subject to change without notice. |
Installation Instructions
DOWNLOADS
Canadian Solar module DATASHEET
Canadian Solar module Installation Manual
