Description

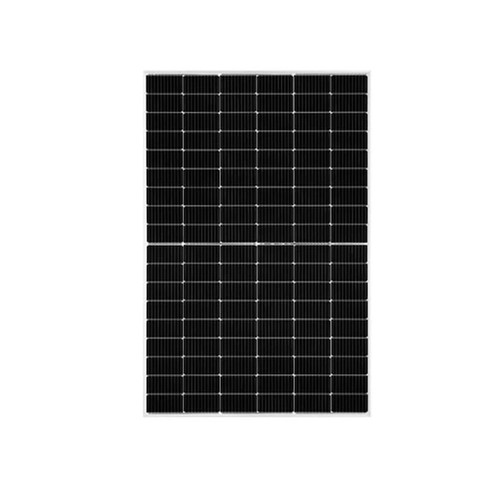

The Mission Solar 435 watt solar panel delivers high power output, dependable performance, and American-made quality for residential, commercial, and utility-scale solar installations. Manufactured in the USA of San Antonio, Texas, this monocrystalline PERC module features a white backsheet with a black anodized aluminum frame while maximizing energy production. Engineered for long-term durability, it is built to withstand demanding weather conditions, including heavy snow and high wind loads.
Every Mission Solar module undergoes rigorous quality and reliability testing to ensure years of dependable performance. Backed by a 25-year product warranty and 30-year performance warranty, the Mission 435W solar panel offers long-lasting value and peace of mind. Order online or PHONE 888-498-3331.
FEATURES
- Proudly made in the USA
- High-efficiency 435W monocrystalline PERC solar panel
- Passed load test of 5400 Pa snow load and 2400 PA wind load.
- 25-year product warranty and 30-year power output warranty
- Qualifies for IRS Solar Energy Tax Credits and rebates
- Qualifies for the Buy American Act and American Recovery Reinvestment Act
- UL certified, CEC, IEC approved
Parts / Specifications
Manufacturer: |
Mission Solar Energy |
Country of Origin: |
USA |
Model: |
MSX10-435HN0B |
Maximum Power STC: |
435 watts DC |
Maximum Power PTC: |
405.6 watts DC |
Nominal Power NOCT: |
326.3 watts DC |
Module Efficiency: |
22.3% |
Maximum Power Voltage Vmp (V): |
33.31 Volts |
Maximum Power Current Imp (A): |
13.07 Amps |
Open Circuit Voltage Voc (V): |
39.56 Volts |
Short Circuit Current Isc (A): |
13.79 Amps |
Maximum System Voltage (IEC/UL): |
1500V DC |
Maximum Series Fuse Rating: |
30A |
Cells Per Module: |
108 cells, multi busbar |
Cell Type: |
N-type TOPCon Monocrystalline |
Frame: |
35 mm Anodized Aluminum, Black |
Backsheet: |
White backsheet |
Front Cover: |
3.2 mm tempered glass, low iron, anti-reflective coating |
Dimensions HxWxD: |
69.37 x 44.65 x 1.38in (1722 mm x 1134 mm x 35 mm) |
Weight: |
46.96 lbs. (21.3 kg) |
Connector Type: |
MC4 compatible |
Output Cables: |
1.2 m, Wire 4 mm (12AWG) |
Junction Box: |
Protection class IP67 with 3 bypass-diodes |
Front Load (snow) Test: |
5600 Pa |
Rear Static Load (wind) Test: |
2400 Pa |
Hailstone impact test: |
1 inch hail at 23M/s from 1m distance |
Modules per Pallet: |
28 |
Pallet Weight: |
1,360 lbs |
Fire Safety Classification: |
Type 1 |
Certifications: |
UL 61730 IEC 61215 - IEC 61730 IEC 61701 |
Product Warranty: |
25-year material and workmanship |
Performance Warranty: |
30-year linear power output warranty |
DISCLAIMER: |
Product specifications are dependant on manufacturer information and are subject to change without notice. |
