Description

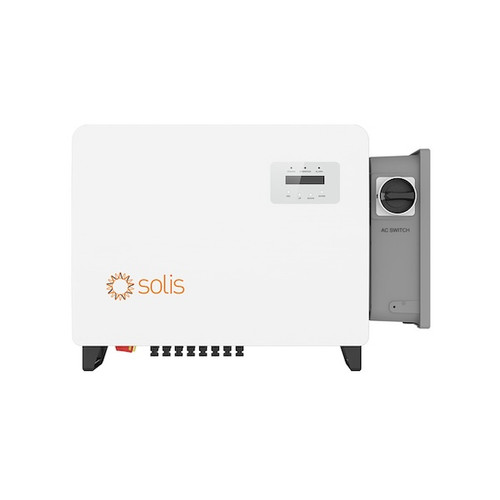

The Solis S6-GC30K-LV-US is a 30kW three-phase string inverter designed for commercial and industrial solar installations operating on 208V electrical systems. Equipped with three independent MPPTs and up to 97.7% efficiency, it helps maximize energy production while providing flexibility for a variety of array layouts and site conditions.Built for long-term reliability, this inverter features integrated AFCI protection, intelligent string monitoring, I-V curve diagnostics, and Type II surge protection on both the DC and AC sides. Its rugged Type 4X enclosure and smart fan-cooling system support dependable operation in challenging outdoor environments, while the standard 10-year warranty provides added peace of mind. UL certified. Order online or PHONE 888-498-3331
Product Features
- 30kW three-phase inverter for 208Vac commercial solar applications
- Three MPPTs for improved energy harvest and design flexibility
- Up to 97.7% maximum efficiency
- Integrated AFCI arc-fault protection and advanced monitoring tools
- Type 4X enclosure with a standard 10-year manufacturer warranty
Videos
View AllClose
Parts / Specifications
Manufacturer: |
Solis |
Model SKU: |
S6-GC30K-LV-US |
INPUT PV (DC): |
DC INPUT PV |
Max. input voltage: |
1000 V |
Rated Voltage: |
600 V |
Startup voltage range: |
195 V |
MPPT voltage range: |
180-1000 V |
Max. input current per string: |
40 A |
Max. short-circuit current per string: |
63 A |
Number of MPPT / Number of strings per MPPT: |
3 / 6 |
AC OUTPUT: |
AC OUTPUT |
Rated output power: |
30 kW |
Maximum apparent output power: |
33 W |
Rated output power: |
33 W |
Rated grid voltage: |
3Ф/PE, 208 V |
Rated frequency: |
60 Hz |
Rated output current: |
91.6 A |
Power factor: |
>0.99 (0.8 leading - 0.8 lagging) |
THDi: |
<3% |
EFFICIENCY: |
EFFICIENCY |
PV Max. efficiency: |
97.7% |
PV CEC efficiency: |
97.0% |
PROTECTION: |
PROTECTION |
Integrated AFCI (DC arc-fault circuit protection: |
Yes |
DC reverse-polarity protection: |
Yes |
GENERAL DATA: |
GENERAL DATA |
Dimensions (W / H / D): |
25.5 x 24.8 x 9.9 in |
Weight: |
81.6 lb |
Topology: |
Transformerless |
Self-consumption: |
< 1 W at night |
Ingress protection: |
Type 4X |
Cooling method: |
Natural convection |
Max operation altitude: |
13,120 ft (4000 m) |
Compliance: |
UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
