Description

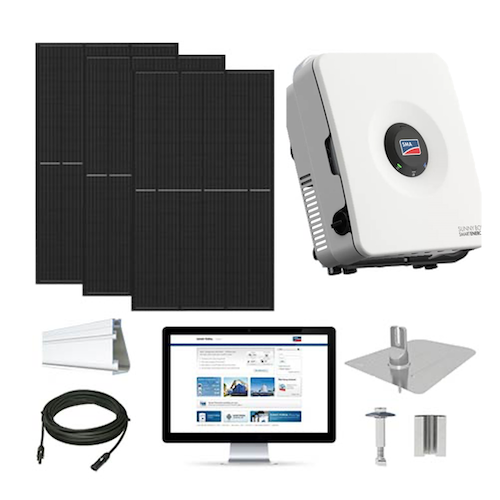

This high-powered, made in the USA solar energy system generates 9,020 watts (9 kW) of grid-tied electricity with (22) 410 watt Mission MSE410HT0B premium all-black modules, SMA Sunny Boy inverter, Sunny Portal 24/7 monitoring, disconnect box, rooftop mounting, safety labels, and permit-ready building electrical plans. The made in the USA XL-size solar panels are ideal on larger rooftop or ground mounts. Built to last, Mission solar panels have a 25 year warranty. The grid-tied Sunny Boy inverter is SunSpec Code compliance-ready for rooftop shutdown, or it can have an optional 2,000 watt Emergency Power Supply for daytime power in case of grid outage. Choose the DIY base kit, or add your options for rapid shutdown, ground mounting, backup storage battery, or full-service installation. This affordable solar kit has every component needed for easy installation that will save money on monthly utility bills. Order online or PHONE 888-498-3331
Parts / Specifications
What is included: |
Permit-ready plans, lifetime support, solar panels, inverter(s), mounting, monitoring, safety labels, accessories, manufacturer's warranty |
What is not included: |
Conduit, electrical wire, circuit breaker(s), junction boxes, sealant, concrete |
PARTS LIST: |
PARTS LIST |
Solar Panels: |
(22) Mission solar panel model MSE410HT0B all-black |
Inverter(s): |
(1) SMA Sunny Boy Smart Energy hybrid inverters SBSE 7.7 |
Disconnect: |
AC disconnect box and integrated DC safety switch |
Monitoring: |
24/7 system monitoring Sunny Portal |
Wires: |
(3) x 100' PV wires with MC4 connectors |
Mounting: |
IronRidge rooftop racks, portrait layout, flush mount |
Roof Anchors: |
Choose shingle roof flash-foot, universal tile hook, or metal roof base. Other mounts available as needed; additional cost may apply |
Hardware: |
Module bonding clamps, rails splices, grounding lugs, wire clips |
Safety Labels: |
NEC code compliant site map placard and safety labels |
SYSTEM SPECIFICATIONS: |
SYSTEM SPECIFICATIONS |
Maximum Power DC (Wp): |
9,020 watts DC; 9.0 kW |
Maximum Power AC (Wp): |
8,235 watts AC CEC |
Estimated Power Generated: |
1,090 kWh AC monthly average |
Maximum Power Voltage Vmp (V): |
240 Volts |
Maximum System Output Current Imp (A): |
32 Amps |
Minimum Required OCPD Circuit Breaker Rating (A): |
60 Amps |
Array Dimensions: |
484 square feet |
Array Weight: |
1,276 lbs |
Distributed Load: |
2.6 lbs psf |
Design Criteria: |
CRITERIA FOR DESIGN |
ASCE Stanadard: |
7-10 |
Exposure Category: |
B - urban and suburban areas, wooded areas, or other terrain with numerous closely spaced obstructions having the size of single family dwellings or larger. |
Wind Speed Rating: |
110 mph |
Snow Load: |
20 lb psf |
Anchor Spacing: |
6ft span |
Other Designs: |
Heavy duty wind or snow version available wtih additional parts and costs |
Disclaimer: |
Product specifications are dependent on manufacturer information and are subject to change without notice. |
Installation Instructions
DOWNLOADS
IronRidge ROOF mount Datasheet
IronRidge roof mount Installation Manual
IronRidge GROUND mount Datasheet
IronRidge GROUND mount Installation Manual
SMA Sunny Boy Smart Energy SBSE Datasheet
SMA Sunny Boy Smart Energy SBSE Installation Manual
MIssion solar panel installation manual
DIY or Full-Service Pro Solar Installation
You can choose how to install the solar panel system. You can Do-It-Yourself (DIY), hire any contractor or handyman for labor, or we can provide Full-Service Professional installation. Most customers choose DIY to save some serious money. However you decide to go solar, we will provide the permit plans, instruction manuals and lifetime technical support. You will also have the same manufacturer warranties, and be eligible for tax credits, rebates and other incentives.
Professional solar panel system installation by a state licensed contractor includes labor, wiring, electrical setup, balance of system parts, building permit, utility approval, inspection, monitoring setup, and activation. 5 year warranty on labor. Installation services are not subject to state sales tax. Final price subject to system design and site visit. Additional fees may apply for electrical panel upgrade, multiple roof areas, conduit wiring greater than 100 ft, two or more story property, or tilt mounting.
How to Install the Solar Panel Kit with String Inverter
- Read and follow the installation instruction manuals provided with the solar panels, inverter and mounting system
- Secure the roof attachments to the roof rafters; add caulk as needed
- Attach mounting rails to the roof attachments using supplied hardware
- Secure the solar panel(s) to the mounting rails using the supplied mid-clamps and end-clamps
- Connect the solar panel cables
- Connect the last PV cable to a junction box
- Connect PV wires from the junction box to the inverter
- Connect the inverter to a PV solar disconnect box
- Connect the PV solar disconnect box to a new circuit breaker in the household electrical box
- Contact the local building department or electric utility company to schedule inspection and connection to the grid for permission to operate
Tools Required to Install Rooftop Solar Mounting
- Tape measure
- Roofers bar, shingle ripper
- Chalk line
- Stud finder
- Caulking gun
- Sealant compatible with roofing materials
- Drill with 7/32" long-style bit
- Drill or impact gun with 1/4" or 5/16" deep socket
- Ladder, Safety harness and rope
- Wire stripper, cutter, crimping tool
- Conduit bender
- Voltage or Amp meter, testing tool
How to Install PV Solar Panel Roof Flashing Attachment
Simply slide the flashing under a row of roof shingles, drill pilot hole, apply sealant to hole, secure with bolt and attach sealing washer. Just a few minutes to install flash-foot. Watch this video for a demonstration.
