Description

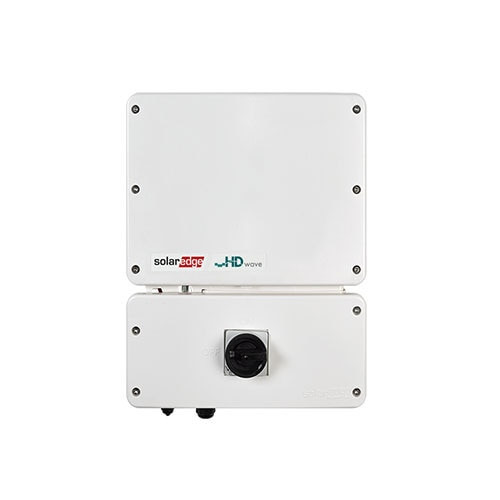

The 5.7 kW SolarEdge Home Hub hybrid inverter is a next-generation single-phase HD-Wave inverter engineered for superior efficiency, intelligent energy management, and full compatibility with SolarEdge Home Batteries. Designed and built in the USA, this dual-rated “BE78” model offers 5.7 kW AC on-grid power and an expanded 12.5 kW battery access/backup rating—providing greater energy independence and whole-home backup capability.
Equipped with a built-in Wi-Fi antenna, plus Ethernet and RS485 ports for flexible connectivity, the Home Hub seamlessly integrates solar, storage, and smart-energy devices into one platform. Featuring AC Rapid Shutdown (RSD), ground-fault and arc-fault protection, and revenue-grade metering (RGM) with optional consumption metering via external CTs, this model meets the latest safety and performance standards including UL 1741-SB and Rule 21 compliance. Order online or PHONE 888-498-3331
Product Features
- Built-in communication with Wi-Fi antenna included (Ethernet and RS485 ports also available)
- Integrated AC Rapid Shutdown, ground-fault and arc-fault protection for enhances safety
- PCS-certified RGM and consumption metering support (CTs optional)
- Compatible with SolarEdge monitoring platform and smart energy devices for remote monitoring of PV system\
- USA-built, NEMA 3R enclosure for indoor/outdoor installation
- Lightweight and easy to install
- 12 year warranty
- Qualifies for Federal Energy Tax Credit and State and Utility Solar Rebates!
Videos
-
SolarEdge Home Hub Inverter Wiring Overview
This video will walk you through the basics of wiring the Sola...
-
SolarEdge Home Hub Inverter: Battery Modes & Disabling Grid Charge
This video will walk you through selecting battery mode and di...
-
SolarEdge Home Hub Inverter: EV Charger Wiring
This video will guide you through wiring a SolarEdge EV Charge...
Parts / Specifications
Manufacturer: |
SolarEdge |
Model: |
Single Phase Home Hub Inverter with Prism Technology |
Model Number: |
USE5700H-USMNBE78 |
OUTPUT - AC ON GRID: |
OUTPUT - AC ON GRID |
Rated AC Power: |
5760 watts |
Maximum AC Power Output: |
5760 watts |
AC Frequency Range (min - nom - max): |
59.3 - 60 - 60.5 Hz |
Maximum Continuous Output Current: |
24 Amps |
GFDI Threshold: |
1 Amp |
Total Harmonic Distortion (THD): |
<3% |
Power Factor: |
1, adjustable -0.85 to 0.85 |
Utility Monitoring, Islanding Protection, Country Configurable Thresholds: |
Yes |
Charge Battery from AC (if Allowed): |
Yes |
Typical Nighttime Power Consumption: |
<2.5 W |
OUTPUT - AC BACKUP: |
OUTPUT - AC BACKUP |
Rated AC Power in Backup Operation: |
4800 watts |
Peak AC Power (<10 sec) in Backup Operation: |
12,500 watts |
AC L-L Output Voltage Range in Backup: |
211-264 Vac |
AC L-N Output Voltage Range in Backup: |
105-132 Vac |
AC Frequency Range in Backup (min - nom - max): |
55 - 60 - 65 Hz |
Maximum Continuous Output Current in Standalone Operation: |
52 Amps |
Locked Rotor Amperage (LRA): |
Up to 106 Amps |
GFDI: |
1 Amps |
THD: |
<5% |
INPUT - DC (PV AND BATTERY): |
INPUT - DC (PV AND BATTERY) |
Transformer-less, Ungrounded: |
Yes |
Max Input Voltage: |
480 Vdc |
Nominal DC Input Voltage: |
380 Vdc |
Reverse-Polarity Protection: |
Yes |
Ground-Fault Isolation Detection: |
600kΩ Sensitivity |
INPUT - DC (PV): |
INPUT - DC (PV) |
Maximum DC Power: |
11520 watts |
Maximum Input Current: |
30 Amps DC |
Max. Input Short Circuit Current: |
45 Amps DC |
Maximum Inverter Efficiency: |
99.2% |
CEC Weighted Efficiency: |
98.5% |
INPUT - DC (BATTERY): |
INPUT - DC (BATTERY) |
Supported Battery Types: |
SolarEdge Home Battery 400V |
Number of Batteries per Inverter: |
Up to 3 |
Continuous Power Per Inverter: |
12,500 watts |
Max Input Current @240V: |
40 Amps DC |
SMART ENERGY CAPABILITIES: |
SMART ENERGY CAPABILITIES |
Consumption Metering: |
Built-in |
Battery Storage: |
With Backup Interface (purchased separately) for service up to 200A; up to 3 inverters |
EV Charging: |
Direct connection to the SolarEdge Home EV Charger |
ADDITIONAL FEATURES: |
ADDITIONAL FEATURES |
Supported Communication Interfaces: |
RS485, Ethernet, Cellular, Wi-Fi (optional), SolarEdge Home Network (optional) |
Revenue Grade Metering, ANSI C12.20: |
Built-in |
Integrated AC, DC and Communication Connection Unit: |
Yes |
Inverter Commissioning: |
With the SetApp mobile application using built-in Wi-Fi Access Point for local connection |
DC Voltage Rapid Shutdown (PV and Battery): |
Yes, NEC 690.12 |
STANDARD COMPLIANCE: |
STANDARD COMPLIANCE |
Safety: |
UL 1741, UL 1741SA, UL 1741SB, UL 1699B, CSA 22.2#107.1, C22,2#330, C22.3#9, ANSI/CAN/UL 9540 |
Grid Connection Standards: |
IEEE1547-2018 and IEEE-1547.1 Rule 21, Rule 14H |
Emissions: |
FCC Part 15 Class B |
Power Control System (PCS): |
UL 1741 PCS |
INSTALLATION SPECIFICATIONS: |
INSTALLATION SPECIFICATIONS |
AC Output Conduit Size / AWG Range: |
1'' maximum / 14-4 AWG |
EV AC Output Conduit Size / AWG Range: |
1'' maximum / 14-4 AWG |
DC Input (PV) Conduit Size / AWG Range: |
1'' maximum / 14-6 AWG |
DC Input (Battery) Conduit Size / AWG Range: |
1'' maximum / 14-6 AWG |
Dimensions with Connection Unit (HxWxD): |
21.06 x 14.6 x 8.2 in / 535 x 370 x 208 mm |
Weight with Connection Unit: |
44.9 lb/ 20.3 kg |
Noise: |
< 50 dBA |
Cooling: |
Natural Convection |
Protection Rating: |
NEMA 4X |
SolarEdge Single Phase Home Hub Inverter Datasheet
