Description

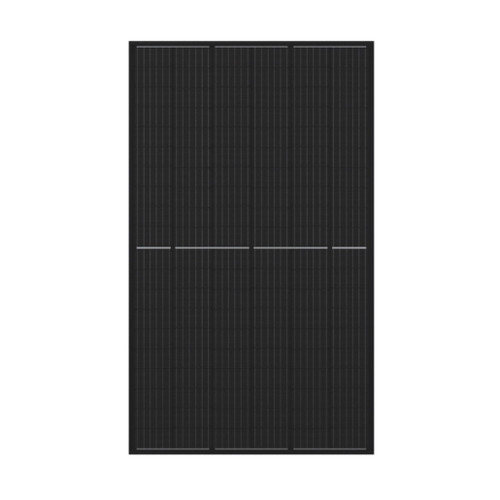

The 450 watt Peimar DR10H450M solar panel is a high-performance all-black monocrystalline PERC module built for residential and commercial projects that demand high output and a sleek appearance. Designed with advanced cell technology and anti-reflective tempered glass, this module delivers strong energy production across a wide range of light conditions. Featuring a 0 to +5W positive power tolerance, the DR10H450M modules ensures dependable real-world performance that meets or exceeds its rated output at 20.82% efficiency. Its rugged construction has passed stringent mechanical load testing for snow and wind, making it a reliable choice for long-term installations. UL certified and CEC approved, and backed by a 20-year product warranty and 30-year linear power output warranty, this panel offers lasting performance and peace of mind. Minimum Order of 10 modules. Order online or PHONE 888-498-3331.
WANT A SOLAR PANEL SYSTEM AT THE LOWEST COST? START SOLAR DESIGN
FEATURES
- High efficiency, Mono PERC half-cell module
- Modern black frame and backsheet for a clean, low-profile look
- Excellent low-light performance with anti-reflective glass
- Guaranteed 0 to +5W positive power output tolerance
- Rated for 5400 Pa snow load and 2400 Pa wind load
- 20-year product warranty and 30-year linear power warranty
- Qualifies for IRS Renewable Energy Tax Credits and rebates
- UL certified, CEC, TUV, IEC, ETL approved
Parts / Specifications
Manufacturer: |
Peimar |
Country of Origin: |
Italy |
Model: |
DR10H450M |
Maximum Power STC: |
450 watts DC |
Maximum Power PTC: |
417.9 watts DC |
Nominal Power NOCT: |
337.5 watts DC |
Module Efficiency: |
20.82% |
Maximum Power Voltage Vmp (V): |
33.91 Volts |
Maximum Power Current Imp (A): |
13.27 Amps |
Open Circuit Voltage Voc (V): |
41.18 Volts |
Short Circuit Current Isc (A): |
13.85 Amps |
Maximum system voltage (UL): |
1500V |
Maximum series fuse rating: |
25A |
Cells per module: |
120 half cells |
Cell Type: |
M10 HALF monocrystalline PERC |
Frame: |
Anodized aluminium alloy, double wall |
Glass: |
3,2 mm / 0,13” thick, low iron tempered glass |
Dimensions: |
75.03 x 44.64 x 1.38 inches (1906 x 1134 x 35 mm) |
Weight: |
52.9 lbs (24 Kg) |
Connector Type: |
MC4 or compatible connector |
Output Cables: |
47.24 inches |
Junction Box: |
IP68 Rated |
Front Load (snow) Test: |
5400Pa |
Rear Static Load (wind) Test: |
2400Pa |
Hailstone Impact Test: |
1 inch hail at 23M/s from 1m distance |
Modules per Pallet: |
31 |
Pallet Weight: |
1,708.6 lbs |
Pallet Dimensions: |
76.38 x 44.49 x 50.0 inches |
Product Warranty: |
25-year material and workmanship |
Performance Warranty: |
30-year power output warranty |
DISCLAIMER: |
Product specifications are dependant on manufacturer information and are subject to change without notice. |
Peimar DR10H450M DATASHEET
