Description

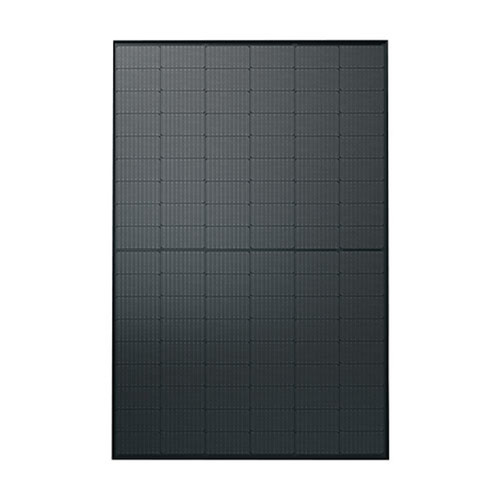

The 440 watt Axitec TOPCon monocrystalline bifacial solar panel combines high-end performance with sleek all-black aesthetics, making it an ideal choice for both residential and commercial installations. Built with 108 N-Type TOPCon bifacial half-cut cells, this glass-on-glass module delivers exceptional durability, higher energy yield, and improved efficiency even in low-light conditions. With a module conversion efficiency of 22.53%, it harnesses additional energy from reflected light on the rear side to maximize output—up to 485 watts under bifacial test conditions. Its full black frame and backsheet design provide a clean, modern appearance that blends beautifully with any rooftop.
Engineered for long-term reliability, the Axitec AC-440TGB/108BB features a robust 30 mm black aluminum frame, dual 2.0 mm glass layers, and an IP68-rated junction box with MC4-EVO2 connectors for superior weather resistance. Rated at 1500 VDC system voltage and tested to withstand loads up to 113 PSF, it performs confidently under the harshest environmental conditions. With a 30-year manufacturer and performance warranty, this bifacial panel ensures lasting power generation, premium efficiency, and energy savings that stand the test of time. Min Order pallet of 10 modules. Order online or PHONE 888-498-3331
FIND READY-MADE AXITEC SOLAR KITS WITH EVERY COMPONENT FOR A COMPLETE INSTALLATION.
FEATURES
- N-Type TOPCon monocrystalline bifacial module with 22.53% module efficiency for superior power density
- Generates up to 485 watts using reflected rear-side light for higher total yield
- Maintains strong output even in diffuse light and high heat
- High reliability with guaranteed 0 to +3W power output tolerance
- 30-year manufacturer's warranty plus 30-year performance guarantee
- Qualifies for IRS Solar Energy Tax Credits and rebates
- UL certified, CEC, IEC approved
Parts / Specifications
Manufacturer: |
Axitec Solar |
Product Line: |
AXIblackbiperfect |
Model: |
AC-440TGB/108BB |
Country of origin: |
Germany / China |
Maximum Power STC: |
440 watts DC |
Maximum Power PTC: |
418.3 watts DC |
Nominal Power NOCT: |
330.0 watts DC |
Module Efficiency: |
22.53% |
Maximum Power Voltage Vmp (V): |
33.24 Volts |
Maximum Power Current Imp (A): |
13.24 Amps |
Open Circuit Voltage Voc (V): |
39.84 Volts |
Short Circuit Current Isc (A): |
14.02 Amps |
Maximum System Voltage: |
1500 VDC |
Maximum Series Fuse Rating: |
30 A |
Cells Per Module: |
108 half-cut cells |
Cell Type: |
N-Type TOPCon bifacial high efficiency monocrystalline cells |
Frame: |
1.18 inch black aluminum frame |
Backsheet: |
2.0 mm glass, cell spaces black |
Frontside: |
2.0 mm low-reflection white glass |
Dimensions: |
67.80 x 44.65 x 1.18 inch (1722 x 1134 x 30 mm) |
Weight: |
52.47 lbs (23.8 kg) with frame |
Connector Type: |
MC4 |
Junction Box: |
IP68 Rated |
Front Load (snow) Test: |
2400 Pa |
Design load (pressure/suction): |
75.3 PSF / 33.3 PSF |
Test load (pressure/suction): |
113 PSF / 50 PSF |
Hailstone impact test: |
1 inch hail at 23M/s from 1m distance |
Modules per Pallet: |
36 |
Pallet Weight: |
N/A |
Fire Safety Classification: |
Type 29 (UL 1703) or CLASS C (IEC 61730) |
Certifications: |
UL, CEC, IEC |
Product Warranty: |
30-year material and workmanship |
Performance Warranty: |
30-year performance guarantee |
DISCLAIMER: |
Product specifications are dependant on manufacturer information and are subject to change without notice. |
Axitec solar panel DATASHEET
